Summary

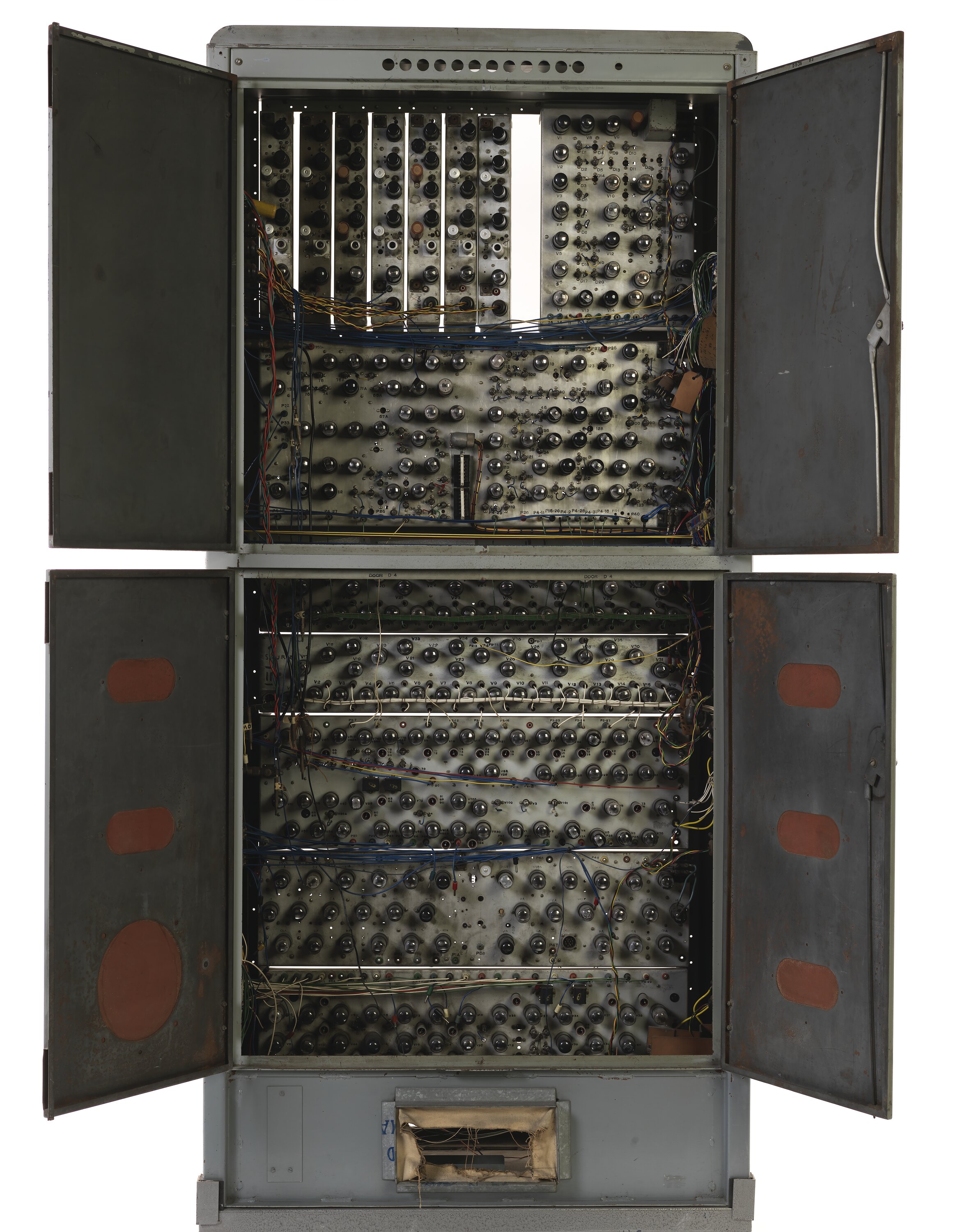

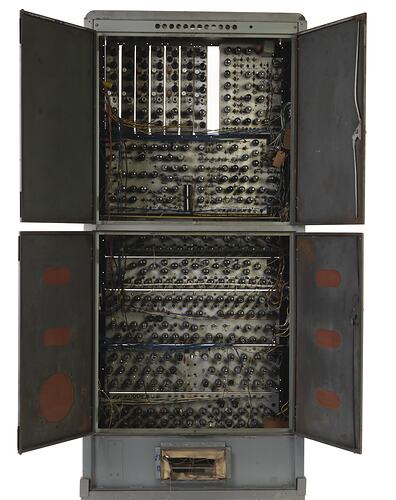

Cabinet holding the arithmetic circuitry for CSIRAC. The arithmetic unit was the heart of CSIRAC. It controlled the input and output of data to and from the registers and the sequence of operations between the registers while performing calculations. All the other units in CSIRAC were there to support the processing of data carried out in the registers under the control of the arithmetic unit.

A register provides a means of storing numbers or other pieces of information, which are currently involved in computation. In CSIRAC, the registers consisted of short mercury delay liines, which operated in the same manner as the longer mercury delay lines in the main memory. The arithmetic registers were housed in a small 'hot box' containing short mercury delay lines.

CSIRAC at Melbourne consisted of two rows of cabinets, a control console, input and output devices, test equipment and an off-line paper tape editing area. There were nine cabinets, five in the front row and four in the back. Cool air was blown up through all the cabinets from the basement below. The auxiliary memory (disk drive) occupied the space that would have been occupied by a cabinet in the back row.

The five front row cabinets contained (from left to right viewed from the front) power supplies, input and output circuitry, clock and control circuits, arithmetical circuits and memory control circuits. The four back row cabinets contained (from left to right viewed from the front) power supplies, auxiliary store control circuits, 'disk drive', auxiliary test power supplies and memory control circuits.

The date range (1949-1964) is given to indicate that, although the metal cabinets were first used in 1949, changes were made to the structure and circuitry over the period of CSIRAC's working life.

Physical Description

Grey metal cabinet. It has doors on the front and the back. It now sits on a purpose built collection management stillage.

Significance

CSIRAC was the fourth stored program computer in the world and the first one in Australia. It is the only intact first generation computer left on the planet.
