Summary
Ferrocart vibrator used for car radios designed to run from 12 Volt DC supply. Ferrocart is a brand used by Electronic Industries.
Vibrators are used to change DC into AC which is then be stepped up by a transformer to the voltage required by the radio. The AC output is then turned back to DC to operate the radio, which is done either by a thermionic rectifier or a second set of contacts in the vibrator. A vibrator with two sets of contacts is called a synchronous type. The 4085-027-01 is a non-synchronous type requiring the use of a separate rectifier.
Synchronous vibrators tend to be quite noisy electrically and require more filtering. Both types were somewhat noisy mechanically; they hum.
Physical Description

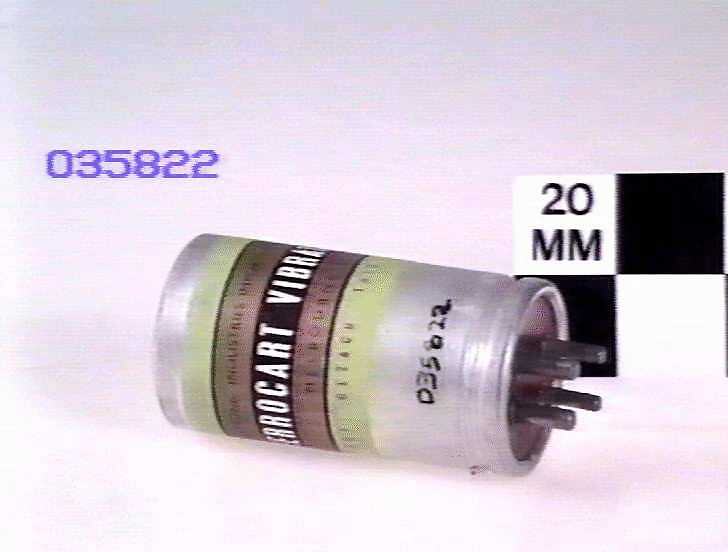

Aluminium cylinder with four pin base in a six pin format with pins 2 and 5 missing.
More Information
-
Collecting Areas
-
Acquisition Information
Donation from Mrs Kennedy, 12 Nov 1984
-
Manufacturer
Ferrocart, South Melbourne, Greater Melbourne, Victoria, Australia, circa 1955
-
Inscriptions
Paper label: ELECTRONIC INDUSTRIES PTY. LTD. / FERROCART VIBRATOR / MELBOURNE / DO NOT DETACH THIS LABEL / NON. SYN / 150 CYCLE / 12 VOLT / 4085-027-01 / FORMERLY / M438 Top end of can: 4085 / 027 / 01
-
Classification
-
Category
-
Discipline
-
Type of item
-
Overall Dimensions
82 mm (Length), 38 mm (Outside Diameter)
-
