Summary
Diode sections used for signal detection and AVC rectification, triode section used for the first stage of audio amplification in radios. 6.3 volt indirectly heated cathode. Used as a Class A amplifier.
This valve is an example of metal-glass construction where a glass valve was fitted with a close fitting metal jacket. They were produced for a short time from 1936 to compete with the newly released metal valves by manufacturers who did not want to tool up for all-metal production.
Physical Description

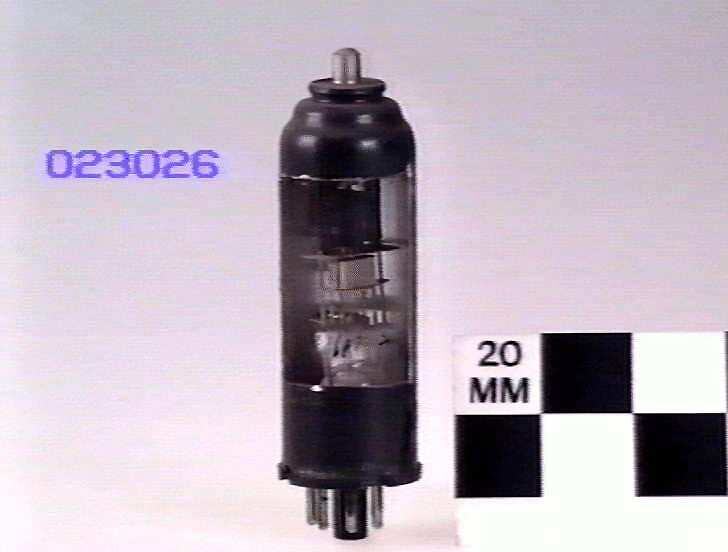

Metal sheathed valve sectioned to show the conventional glass internal structure. It has a top cap and octal base with 7 pins present. Painted black. Mounted on display block.
More Information
-
Collection Names
-
Collecting Areas
Engineering, Information & Communication, Public Life & Institutions
-
Acquisition Information
Donation from J. C. Liddy, 28 Jan 1949
-
Manufacturer
-
Inscriptions
Envelope: NATIONAL/UNION/MADE IN U.S.A./J/6Q7/MG Display block: Brief Description
-
Classification
Electronics, Vacuum technology, Amplification & rectification
-
Category
-
Discipline
-
Type of item
-
Overall Dimensions
111 mm (Length), 33 mm (Outside Diameter)
Not including display block.
-
