Tetrode (usually called a screen-grid valve in its day) designed for use as a radio frequency (RF) amplifier in battery powered equipment. The use of a screen grid between the control grid and the plate reduced the grid-plate capacitance and permitted high gain at radio frequencies without stability problems. 2 volt directly heated cathode.
Physical Description

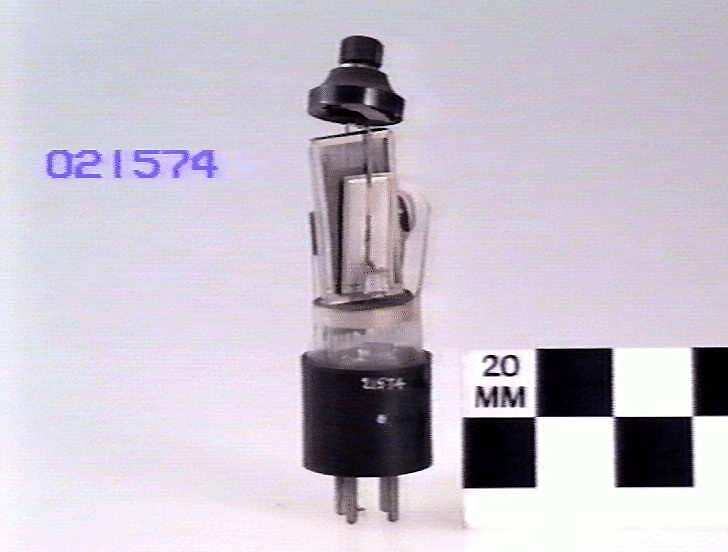

Internal structure of a screen grid valve with most of its bulb removed which has suffered some damage. Mounted on an American style 4 pin (UX) base with a top cap connected to the anode which has become detached.
More Information
-
Collection Names
-
Collecting Areas
-
Acquisition Information
Donation from Mr S. A. Pick, 03 Mar 1941
-
Manufacturer
-
Inscriptions
Bulb: (transfer) Osram/BVA Display block: TETRODE (R.F. Screen Grid) S22/Osram. Made in England./(Brief description)
-
Brand Names
-
Classification
-
Category
-
Discipline
-
Type of item
-
Overall Dimensions - Closed
107 mm (Length), 36 mm (Outside Diameter)
Not including display block.
-
