Summary
12.6 volt indirectly heated cathode at 150 ma. 6 volt. 12C8 type pentode, double diode, pentode, double diode. Manufactured by Ken-Rad, Owensboro, KY, USA, 1944.
The diodes in this valve were designed for use as the signal detector and automatic gain control rectifier in radio receivers, the pentode section had a semi-remote cut-off characteristic and was designed to be used as either an IF or audio amplifier. Equivalent to the 6B8 except for the heater voltage.
Physical Description

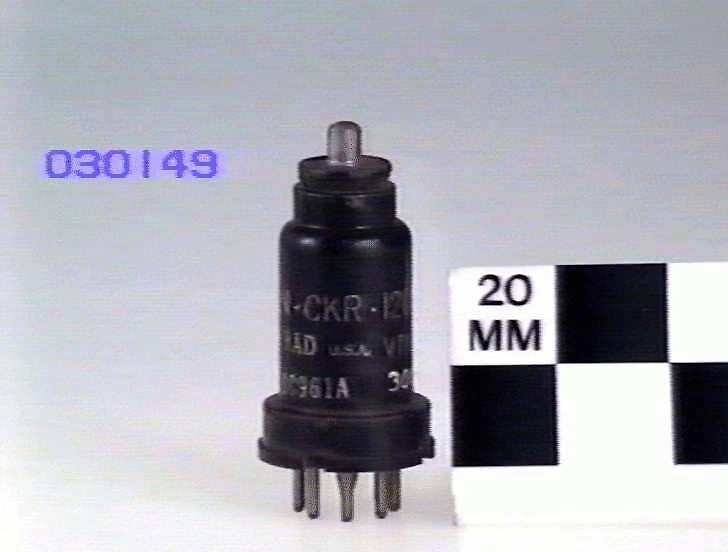

Base type: octal (spigot missing) No. of pins in base: 8 Bulb shape: cylindrical with stepped top and top cap Bulb material: metal
More Information
-
Collection Names
-
Collecting Areas
-
Acquisition Information
Unknown Acquisition Method from Unknown Source, 14 Nov 1978
-
Manufacturer
The Ken-Rad Corporation, Owensboro, Kentucky, United States of America, 1944
-
Inscriptions
Bulb: U / 4 / JAN-CKR-12C8 / KEN-RAD U.S.A. VT-169 / SC961A
-
Brand Names
-
Classification
-
Category
-
Discipline
-
Type of item
-
Overall Dimensions
73 mm (Length), 33 mm (Outside Diameter)
-
