Summary

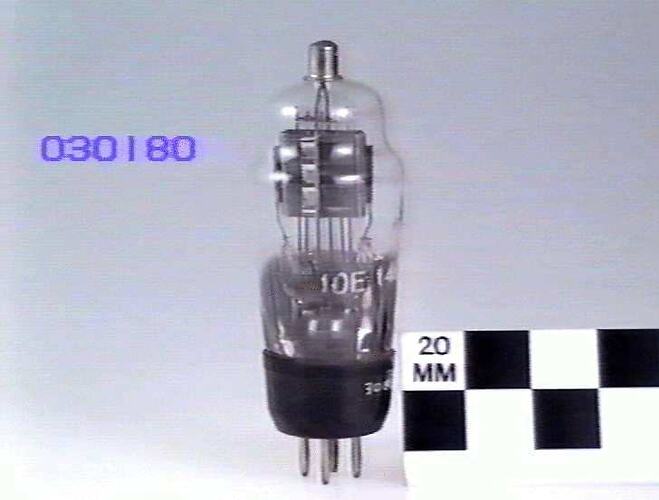

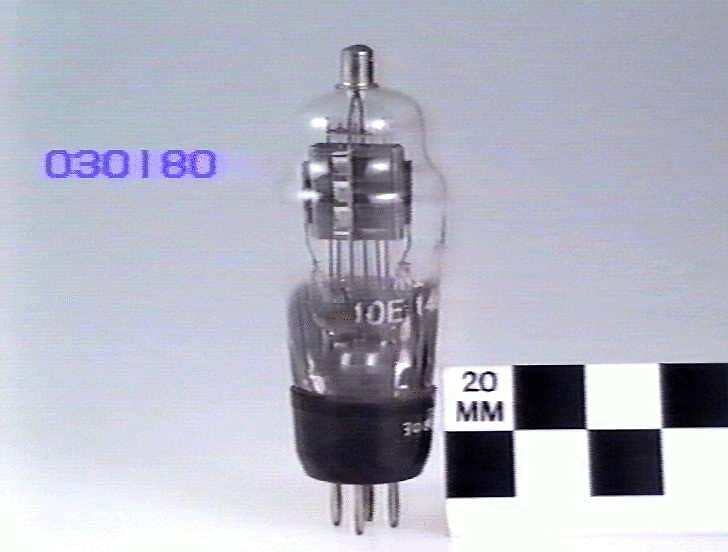

High voltage high vacuum rectifier. 10E/146 was the RAF stores number for a valve with a large number of alternative type numbers including commercial numbers: V1907 (Mazda), U27 (Marconi-Osram) and R11 (Brimar). It also had a number of British Services designators or stores numbers including 10E/146, ZA5193, VU111 and AU5. In about 1943 this type was designated CV1111 to reduce confusion.
Directly heated cathode. Filament 4.0 volts at 1.1 amps. Anode peak inverse 14 kV. Output 50 mA. D. C.
Manufactured for: RAF (U.K.)
Physical Description
Base type: European style No. of pins in base: 4 Bulb shape: shouldered Bulb material: glass Top cap
More Information
-
Collection Names
-
Collecting Areas
-
Acquisition Information
Unknown Acquisition Method from Unknown Source, 20 Sep 1978
-
Manufactured For
-
Manufacturer
-
Inscriptions
Bulb: (broad arrow) Z / 10E-146
-
Classification
-
Category
-
Discipline
-
Type of item
-
Overall Dimensions
137 mm (Length), 49 mm (Outside Diameter)
-
