Summary

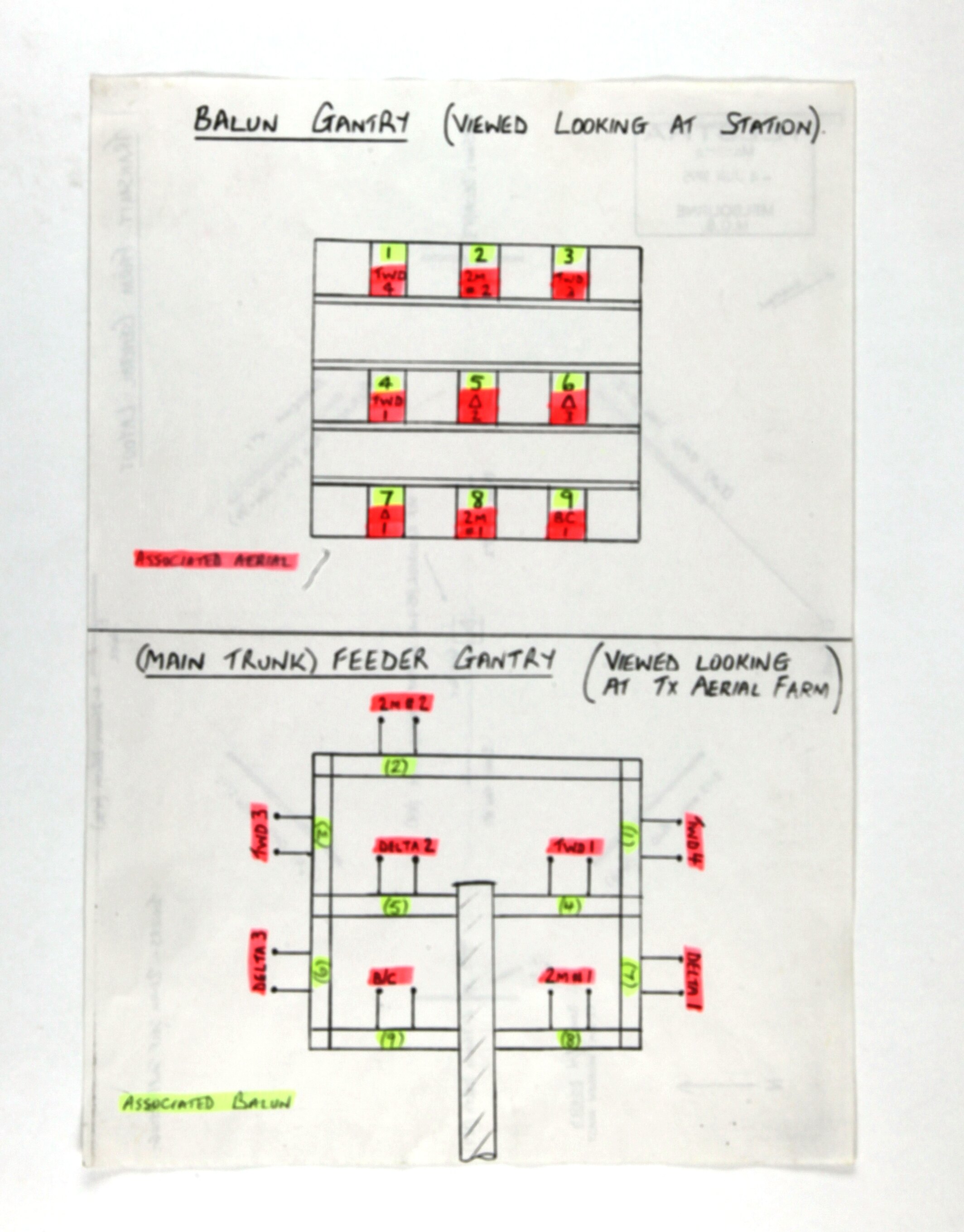

Hand drawn plans for both the Balun Gantry, Feeder Gantry and Transmit Farm.
This document was collected from the Melbourne Coastal Radio Station after it was closed in July 2002. In addition to communications equipment and documentation, items in general office use were collected in order to represent as far as possible the working environment at the time of closure.
Physical Description
The layout comprises two pieces of A4 paper that have been glued together to form a double sided sheet. One side details the 'Transmit Farm General layout' the other the Balum and Feeder gantires. The Farm layout is a black and white photocopy whilst the opposing side (gantries) is a copy that has been subsequently highlighted in yellow and orange fluorescent markers and pencil. There is a M.C.S date stamp on the side documenting the Farm plan.
More Information
-
Collection Names
-
Collecting Areas
-
Acquisition Information
Donation from Mr Michael Greenwood, Aug 2002
-
Creator
Melbourne Maritime Communication Service (Melbourne MCS), Telstra - Australian Maritime Communication Service (Australian MCS), 1225 Boneo Road, Cape Schanck, Mornington Peninsula, Victoria, Australia, 04 Jun 1995
-
Inscriptions
'BALUN GANTRY/ VIEWED LOOKING AT STATION/ ASSOCIATED AERIAL/ (MAIN TRUNK) FEEDER GANTRY (VIEWED LOOKING AT TX AERIEL FARM? ASSOCIATED BALUN' 'TRANSMIT FARM GENERAL LAYOUT...' Telstra Stamp: 4 June 1995
-
Classification
-
Category
-
Discipline
-
Type of item
-
Overall Dimensions
297 mm (Length), 211 mm (Width)
-
References
Melbourne MCS (Melbourne Maritime Coastal Service) accessed 13 March 2012 [Link 1]
-
