Tune (tuning) indicator: a lamp is connected to one end of a loop of wire and a adjustable tap. The loop is placed in series with the earth lead of the jigger secondary coil, and the tap is adjusted to give a reasonable brightness at maximum antenna current. Other positions might lead to bulb burn-out or the lamp being too dim to observe the light.
The lamp indicates by its brightness the current in the aerial circuit, which is adjusted for a maximum by varying the tuning inductor (jigger or spiral inductor).
Tune indicator ST 021416 achieves the same result as ST 21422 but in a different way.
Physical Description

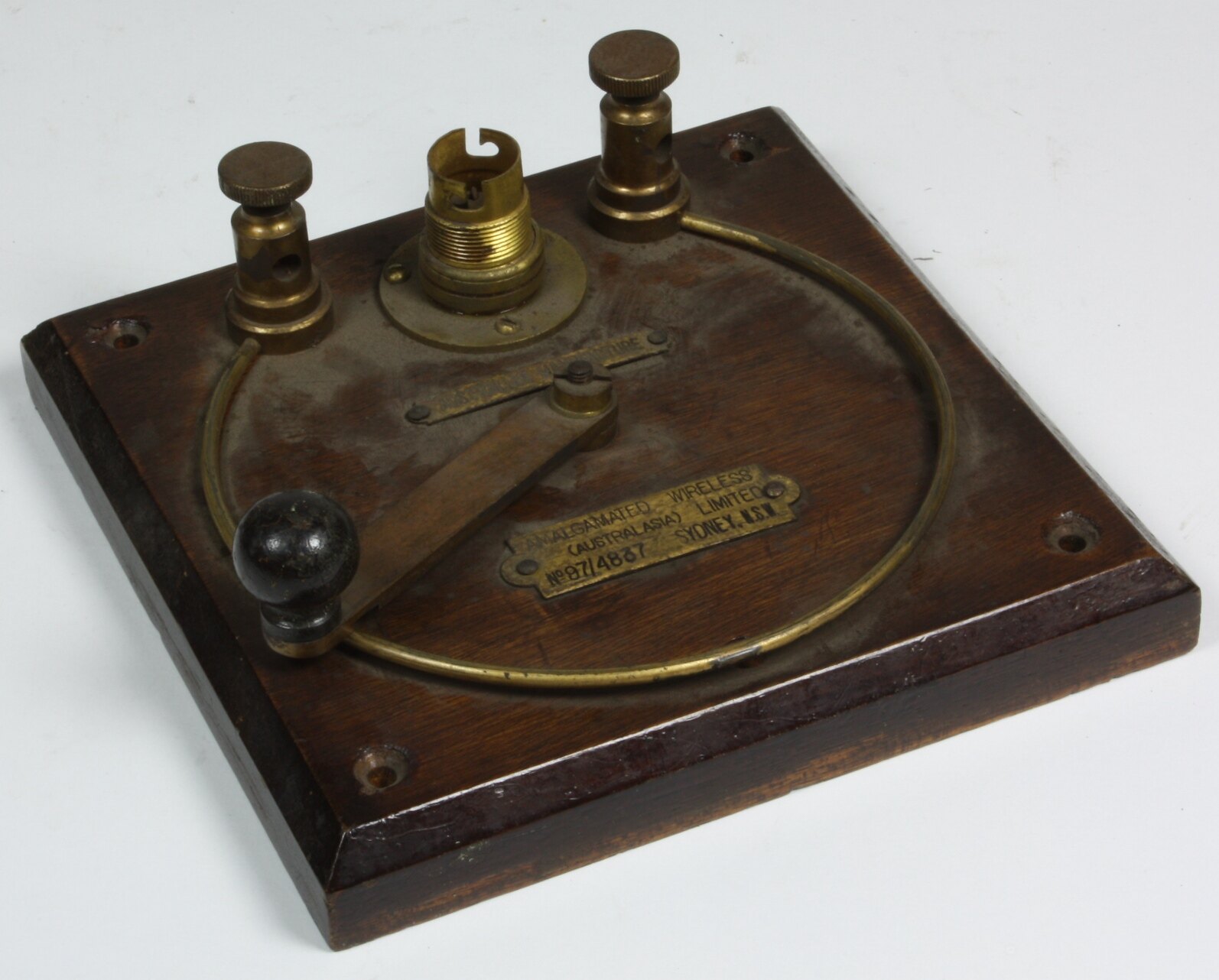

Varnished wooden board with an approximately 270 degree arc of wire connected to two terminals. A wiper arm, fitted with a knob, is connected one side of a lamp socket; the other side is connected to one end of the loop. The globe is missing.
More Information
-
Collecting Areas
-
Acquisition Information
Donation from Amalgamated Wireless (Australasia) Ltd., 12 Mar 1940
-
Manufacturer
Amalgamated Wireless (Australasia) Ltd., Sydney, Greater Sydney, New South Wales, Australia, 1914-1920
-
Inscriptions
Base: AMALAGAMATED WIRELESS / (A-SIA) LTD / No 87-4837 SYDNEY. N.S.W. / AUSTRALIAN MANUFACTURE
-
